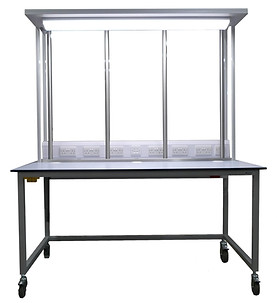

ESD Lab Workbenches
Anti Static Benches
Anti Static ESD workbenches with static dissipative technology designed to protect electrical components. All our tables are made from scratch to your requirements.
Why our tables are the best:
-
Made To Your Sizes
-
Trespa or or 18mm ESD Dissipative Worktop
-
Powder Coated Steel Frames
-
Frames on Wheels or Adjustable Height Feet (for wonky floors)
-
10 Year Guarantee
How to receive a quote? Email us your table sizes, quantity and delivery postcode.
Worktop
Frame
Load
Feet
Lower Rails
Guarantee
16mm Trespa TopLab Base or 18mm ESD Dissipative Worktop
Fully welded 40mm x 40mm x 2mm section
Up to 750KG (our frames can be adapted to take larger loads if required)
Machine threaded adjustable levelling feet or lockable castors
Choice of middle or back rail
10 Years against normal failure
Bespoke. Made to your sizes.
Size
ESD Specification:

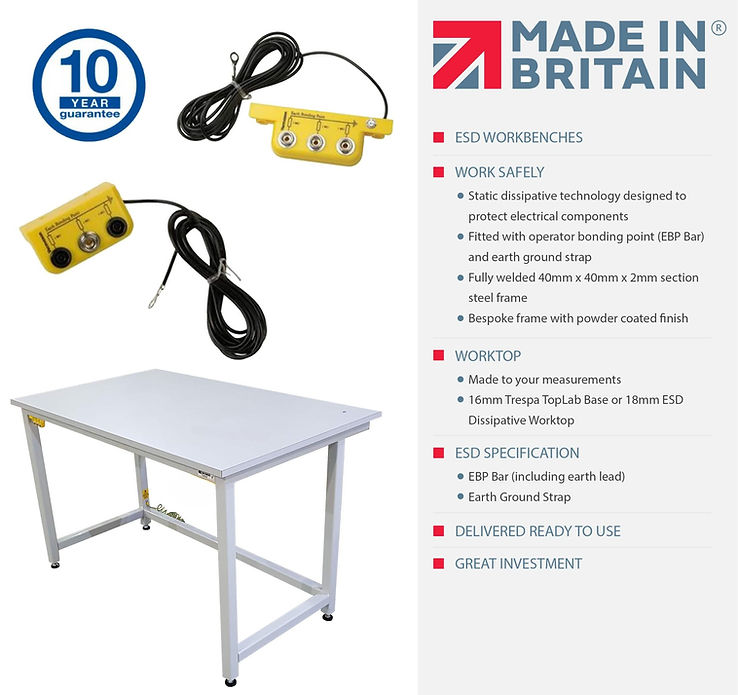

EBP Bar (including earth lead)
Earth Ground Strap
Adjustable Wrist Strap not included
Important Safety Note:
We factory test and record all frames and standalone benches.
All workbenches are fitted with operator bonding point (EBP Bar) and earth ground strap. Tables require your installers to install and test before use. Full details of anti static properties and frame set up are included when a quote is created. If required, Dissipative Mats can be used in conjunction with these table’s
The bench frames are constructed from 40mm x 40mm quality kite marked steel. With its welded joints typically being 3 times stronger than the actual steel. The frame is sand blasted and painted under heat to ensure a tough lasting finish which will not crack, chip or peel like conventional paints. To ensure clients peace of mind the whole frame is supported on 8mm inset welded foot plates which are flow drilled and tapped to accept 12mm levelling feet complete with locking nut mounted.
Standard Frame Colours:
The standard final coating is high gloss but other finishes can be supplied as required. Our standard lab desk frame colours are:
-
White – RAL: 9010
-
Light Grey – RAL: 7035
-
Black
All RAL colours are available but non standard colours carry an extra charge of £50.00 per order
Worktop:
Our standard worktop is 16mm Trespa TopLab Base however 18mm ESD Dissipative Worktop is also available. Details will be provided on all quotes.
%20-%20Blue%20.jpg)
We must understand what an ESD electronics bench (sometimes referred to as an ESD table) is and what they are used for. It's an ESD electronics bench which has a dedicated work surface suitable for use with electrically charged items.
Because the electronics bench itself can ground out-static charges, any stray static charge won’t be transferred to your workers or surrounding equipment; instead, it will be earthed out immediately. This is highly important because electrostatic discharge can be a real problem if you don’t protect against it for your workers and equipment.
ESD tables are commonplace within an ESD-protected area. This is due to the additional protection that they can provide for workers and surrounding equipment. However, some ESD-protected areas make do without having an ESD table – though not an ideal solution, this might still afford you some degree of protection assuming the rest of the ESD-protected area is kitted out with static dissipative products. The best materials for a non-ESD table are wood and metal as these do not generate unlike materials such as plastic.
For maximum safety for your company’s workers and equipment, though, having an ESD table is a necessity. Why would you compromise on safety by providing a standard workbench, after all? ESD electronics benches are designed to ground out any stray static charges which could prove the difference between everyone staying safe and happy – and, well, not.
How ESD Tables Work
So, we’ve clarified that your ESD-protected area really ought to have an ESD table for maximum safety.
But how do specially made ESD tables work, anyway? What is it that makes an electronics workbench more effective at protecting a non-insulating material bench such as wood?
This is a pretty normal question for a person to have; after all, you might think that a material such as wood is the ideal solution for working with electronic components. However, this thinking isn’t quite right; while the wood will offer some degree of protection, it is far from the perfect solution.
The difference between an electronics workbench and a generic workbench is the inclusion of static dissipative materials which should then be grounded to the earth. Static dissipative materials are designed specifically to help you deal with static charges, unlike a wooden workbench which is merely made to offer somewhere upon which to rest.
